Description

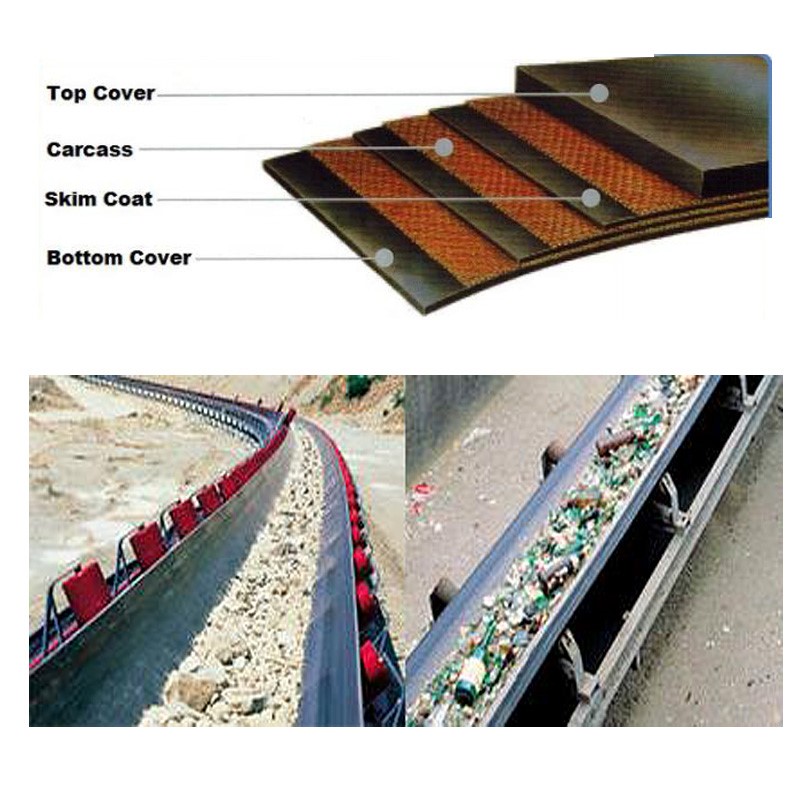

Nylon conveyor belt is characterized by thin in the tape body, good impact and flexural strength, light weight, fatigue durability, as well as best bonding strength between layers, thus having a long lasting service life. The product is suitable for use in the sectors such as building, port, chemical engineering and mine where requiring medium-and-long conveying distance, high operating speed of conveyor-belt and great conveying volume.
Product Table
Fabric type | Fabric structure | Fabric specs |
Thickness (mm/p) | Strength series(N/mm) | Cover thickness | Width(mm) | Length(m) | |||||||
Warp | Weft | 2Ply | 3Ply | 4Ply | 5Ply | 6Ply | Upper | Lower | ||||||
Nylon (NN) | Nylon (N) | Nylon (N) | NN-100 | 0.75 | 200 | 300 | 400 | 500 | 600 | 1.5-8 | 0-4.5 | 400-2000 | ≤300 | |
NN-150 | 0.80 | 300 | 450 | 600 | 750 | 900 | ||||||||
NN-200 | 0.90 | 400 | 600 | 800 | 1000 | 1200 | 500-2000 | |||||||
NN-250 | 1.15 | 500 | 750 | 1000 | 1250 | 1500 | ||||||||
NN-300 | 1.25 | 900 | 1200 | 1500 | 1800 | |||||||||
NN-400 | 1.45 | 1600 | 2000 | 2400 | 800-2000 | |||||||||
NN-500 | 1.55 | 2000 | 2500 | 3000 | ||||||||||
|
|
|
| Change rate of tensile strength and elongation after aging | ||
Mpa | Kgf/cm2 | ﹪ | Cm3/1.61km | ﹪ | ||
Heavy | 18 | 180 | 400 | 0.7 | ±25 | |
Medium | 14 | 140 | 350 | 0.8 | ±25 | |
Light | 10 | 100 | 300 | 1.0 | ±30 | |
